SleepImage Mobile App – New

Getting Started

  • Download the SleepImage App
  • Sign In With Your SleepImage Patient Id and Date of Birth
  • Pair Your Recorder
  • Start Recording

Quick Notes

  1. Accept all permission requests​
  2. Make sure your recorder is fully charged before you begin
  3. Keep your phone/tablet in close proximity (15ft) and plugged into power
  4. Turn off all other apps and Bluetooth connections to your phone/tablet before starting the study
  5. Do not stop the recording until you intend to end the study
  6. After you stop the recording, check the recording History and make sure your recording is uploaded.
  7. Turn off Power Saving Mode in your Settings screen

Permissions​

IOS
BTPermissioniOS-removebg-preview
Click OK to grant access to Bluetooth

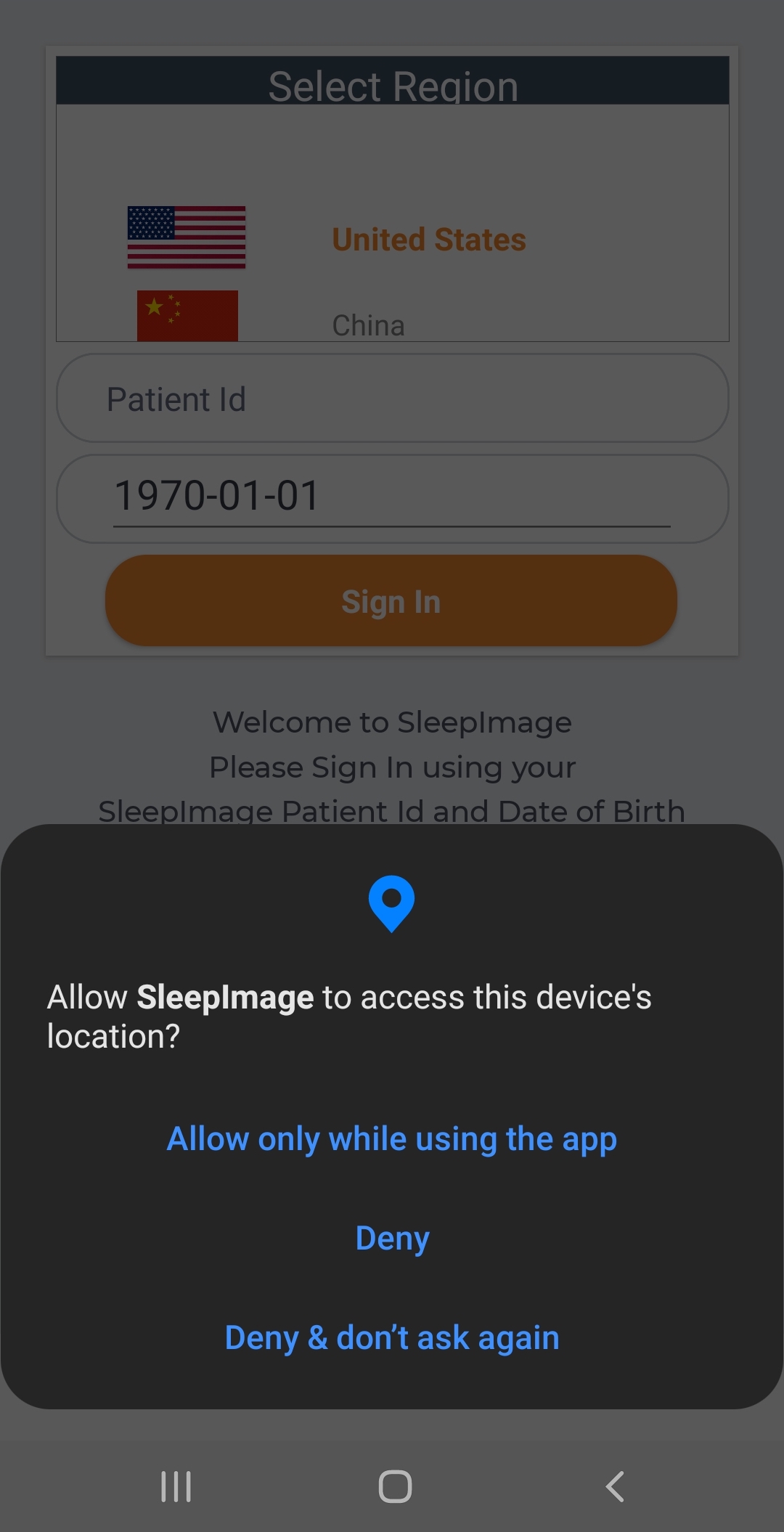

Android
AndroidPermission-removebg-preview
Click “While using the app” to grant access to Bluetooth. The SleepImage App does not track your location.

Sign In

Enter your Patient Id. If you did not receive an email with this information, please contact your healthcare service provider
Enter your Date of Birth

Pair Recorder

Do not pair the recorder in the phone settings!

Make sure your recorder is powered on
If you see the Scan button, enable Bluetooth and then click Scan (left)
Select your recorder and click the Connect button (right)
Make sure the recorder is fully charged before starting a recording

Start Recording

Do not use other Bluetooth accessories, or other apps, during recording. See ‘During Recording: Bluetooth Interference’ in the Troubleshooting section for more information.
Power on your recorder by inserting a finger into the sensor or clicking the power button
Keep your phone/tablet in close proximity and plugged in to power
Click the start button
Verify that the app is displaying SpO2 and Pulse Rate

During Recording

Stay within 15 feet during recording.
If you go out of range and/or remove the ring, check the app when you return
Verify that the app is displaying SpO2 and Pulse Rate values
See Troubleshooting below for additional information

Stop Recording

If the screen on the left did not appear, see “Unexpected Behaviour” in Troubleshooting below
Click the stop button
Go to History tab
Check that all entries say “Upload Status: Complete”
Finished! Your study has been uploaded to your healthcare providers account. Contact them directly for further guidance.

Troubleshooting

If the SleepImage app does not appear in the Apple App Store or Google Play store on your device, make sure to search for “SleepImage”, or click the store badges at the top of this page.
If you still can’t find the app, the most likely reason is an incompatible Android or iOS version. In this case, please try a different mobile device (phone or tablet), if one is available in the household.
If you cannot sign in to the app, first make sure the mobile device is connected to the internet and that there are no typos in the Patient Id.
It is also possible that your Date of Birth was entered incorrectly in the SleepImage System. Please contact your healthcare service provider to verify your sign-in information.
If you are using a Nonin WristOx2 Model 3150, please see “Pairing a Nonin Recorder” below.
If you paired a SleepImage Recorder in Bluetooth settings on the phone settings, unpair it first. Then, try the pairing process in the SleepImage App again.
Make sure Bluetooth is enabled, and that you have granted the necessary permissions to the SleepImage App. On iOS, go to Settings->SleepImage and enable the Bluetooth permission. On Android, go to
Settings->Apps->Permissions->Location and select “Allow while using the app”. Android phones will also need to have Location turned on under Settings->Location.
Make sure your phone/tablets’ operating system is up-to-date.
After pressing the button with the magnifying glass icon, with the recorder powered on, wait at least 60 seconds. Some phones take longer to discover and pair with bluetooth accessories.
Restart both the phone/tablet and the recorder.
If there is another phone/tablet available, try that one to rule out that there is an issue with the recorder.
If “Connection Lost” or “No SpO2 signal, check sensor” persists on the screen after going out of range and/or after the ring has been removed,
  1. Take off the ring,
  2. If a countdown starts, wait until it finishes,
  3. Put the ring back on the finger and wait at least 20 seconds.
  4. SpO2 and pulse rate values should appear if successful.
Bluetooth is a short-range wireless technology standard that is used for exchanging data between fixed and mobile devices over short distances and building personal area networks. In the most widely used mode, transmission power is limited to 2.5 milliwatts, giving it a very short range of up to 10 meters (33 feet).
Bluetooth Low Energy (BLE) is a low power technology, operating in frequencies between 2.4 GHz and 2.483 GHz ISM. It is very similar to WiFi, as it allows nearby devices to connect with each other.
Other devices such as other Bluetooth devices, WiFi, and even microwave ovens and fluorescent lights may interfere with the Bluetooth connection, as well as physical obstruction.
To minimize the chance of interference, it is important to make sure all devices that are being used are up to date as manufacturers may release updates which improve connectivity and make devices more robust to interference. This includes mobile device updates.
In addition, turning off non-essential devices and connections can help in reducing interference. In clinical practice, some patients may be using essential devices that cannot be turned off and they should consult a physician when making decisions on whether the device can be shut down while recording a sleep study.
In cases where an essential device, such as an insulin monitor, cannot be turned off, an alternative which may help is to use a different mobile device for recording the sleep study, if one is available in the household.
Please note that upload time is dependent on your network connection. Please leave the app in the foreground while the entries on the History tab say If you have attempted an overnight recording per the instructions but your healthcare service provider (HSP) does not see a report, follow the instruction below:
  1. Force-close the SleepImage App (see instructions for iOS and Android)
  2. Make sure the phone is connected to the internet.
  3. Open the SleepImage App.
  4. Wait and look out for notifications at the bottom of the screen indicating an upload attempt.
  5. Go to the History tab and wait until all entries in the list show “Upload Status: Completed”
  6. If you see error messages, try switching from Wifi to Cellular or vice-versa.
The above steps will ensure that any recordings that were performed are uploaded, in the event that the app was closed before completing the upload process, or if there was an issue during recording which caused the app to crash.
Switching from WiFi to cellular, or vice-versa, may also solve the issue.
Avoid the use of Airplane Mode if possible, as it can block Bluetooth and Internet connections and interfere with your recording.

Note: If you are having trouble uploading a study file, DO NOT UNINSTALL the SleepImage Mobile App! If the app is uninstalled, any study files which have not been uploaded (with “Upload Status: Completed”) will be lost and you may need to retest.

Term

Meaning

Patient Actions

Upload Status: Completed

File upload has been completed.

1.     Confirm next steps with your test provider.

Upload Status: Pending

App is waiting for confirmation before starting file upload process.

1.     Wait for updates.

2.     Check internet connection.

3.     If process is taking a long time, force-close and restart the app.

Upload Status: Preparing to Retry

File upload failed previously, and the app is about to retry the upload.

1.     Wait for next upload attempt.

Upload Status: Requesting Authorization

The app is trying to make a connection to the SleepImage servers.

1.     Wait for updates.

2.     If process is taking a long time, force-close and restart the app.

Upload Status: Server Status or Upload Status: Server Error

The server may be temporarily unavailable.

1.     Force-close and restart the app.

2.     Contact support@sleepimage.com for further assistance.

Upload Status: Recorder Not Registered (208)

The recorder is not registered within the SleepImage System.

1.     Contact support@sleepimage.com with the recorder’s serial number (SN).

2.     Once the recorder has been registered, force-close and restart the app to upload your study file.

Upload Status: In Progress

File is being uploaded.

1.     Wait for upload attempt to finish.

Upload Status: Timed Out

The app tried to contact the SleepImage server but got no response.

1.     Check Internet connection.

2.     Force-close and restart the app.

Upload Status: Short Recording

The study file is short and likely does not have enough data to generate a report.

1.     Contact your test provider to confirm whether you will need to retest.

Upload Status: Recorder already assigned to a different patient (209)

The recorder is a patient-specific recorder (such as a SleepImage FingerTip) and is assigned to a different patient.

1.     Contact your test provider to verify you have the correct recorder.

The ‘Recorder Not Registered’ error message will appear when a study file attempts to upload from the SleepImage Mobile App, but the recorder used to collect data is not recognized. This can happen if there is a typo in the recorder’s registration or if the recorder is unauthorized.

If you are seeing this error message, please contact support@sleepimage.com with the recorder’s serial number (SN) and we will confirm the registration of your recorder. The serial number of the recorder will always be displayed in the ‘Settings’ tab of the SleepImage app while the recorder is paired.

While waiting for your recorder to be registered, please do not uninstall the SleepImage app or the recorded study files will be permanently deleted and the data lost. Unregistered recorders will prevent study files from uploading, so until the recorder is registered the only copy of your recorded study will be saved on the SleepImage app on your phone.

If you are scheduled to perform multiple nights of study, please continue to perform those studies even if the recorder is not registered, as the study files can be uploaded at a later date once the recorder is registered. You may also want to reach out to your provider to let them know of the registration issue, as no reports can be generated before the recorder is registered.

Once the recorder has been registered, you can retry uploading study files from the the SleepImage app by leaving it open for a few minutes, or by force-closing and restarting the SleepImage app. The ‘History’ tab of the app will display ‘Upload Status: Completed’ for each study that has been uploaded. Once all studies have been uploaded, the app can be uninstalled without the loss of study data.

If you continue to have trouble uploading your study files, please refer to the ‘Troubleshooting – Upload’ section above on this page.

If recording is not active when you wake up in the morning, it’s possible that a problem occurred that halted the recording prematurely. Contact your healthcare provider, before you return your recorder, in case they want you to repeat the sleep study.
If you have experienced a failed recording, consider using a different mobile device if available. Please review the “Upload” section above for instructions on how to ensure all recordings are uploaded.

When starting a recording, the app will notify you if new firmware is available for your SleepImage Ring. Firmware upgrades are mandatory to ensure that you get the latest features and best functionality.

During the firmware upgrade, please make sure to stay within range and keep the SleepImage App in the foreground on your mobile device.

Do not use your phone for other tasks while the upgrade is in progress.

If you encounter issues where the upgrade is failing, do NOT unpair your recorder.

If the upgrade fails, simply go back to the Recording page and click the start button. The app will notify you that the Ring is in range and the upgrade needs to be completed.

Once the upgrade is completed, your recording will start automatically.

When pairing the Nonin WristOx2 Model 3150 with the SleepImage App, follow these instructions:

  1. Go to your Phone’s Bluetooth settings.
  2. On the back of the Nonin, slide the battery door open and remove one of the batteries for 3 seconds.
  3. Replace the battery and close the battery door.
  4. Your Nonin recorder should show up in the list of nearby Bluetooth devices.
  5. Click the Nonin


Your Nonin is now paired with your phone. Continue in the SleepImage App.

  1. Go to the Settings screen in the SleepImage App and click “Connect New Recorder”.
  2. Place a finger into the Nonin sensor to power on the recorder.
  3. Your recorder should appear in the scan as “Nonin3150_123456789”.
  4. When your Nonin appears in the list, the Connect button.



If “ERROR 4” is displayed on the CheckMe O2 screen, the sensor may be damaged.
  1. Press and hold the power button on the CheckMe O2 for 10 seconds.
  2. Wait 10 seconds.
  3. With the sensor plugged in to the CheckMe O2, turn on the CheckMe O2.

If the screen still shows “ERROR 4” contact your healthcare service provider for a replacement.

FAQ

The app needs this permission because a Bluetooth scan can be used to gather information about the location of the user. This information may come from the user’s own devices, as well as Bluetooth beacons in use at locations such as shops and transit facilities.

The SleepImage App does not record, track, or share the user’s location. Android requires that we ask for this permission to notify you, because the Bluetooth technology can be used for location services.

When you sign in to the SleepImage App, you enter your SleepImage Patient Id and Date of Birth. Patient Id is stored in the app while the DOB is only used to verify that you entered the Patient Id correctly. The Patient Id is a randomly generated identifier. As a result, all physiological data in the SleepImage App is de-identified for security reasons.
The SleepImage App does not store any personal identifying information.
